Differences Between Common Frequency Bands for Anti-UAV Radar

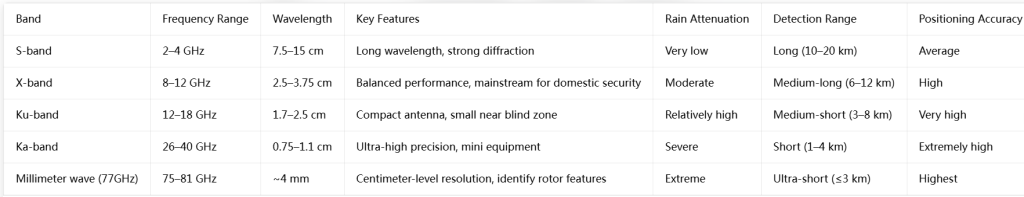

Overview Table
Detailed Advantages, Disadvantages & Application Scenarios
1. S-band (Long-range wide-area warning)
Advantages
The longest wavelength brings minimal signal attenuation in rain, fog and sandstorms, delivering stable performance in coastal and rainy regions.
Good diffraction capability allows detection under mild obstructions, ideal for mountainous areas and coastal lines.
Offers the farthest detection distance under the same transmit power, suitable for airports, borderlines and offshore wind farms requiring full airspace coverage.
Disadvantages
Wide beam leads to poor angular resolution; multiple UAVs are hard to distinguish at close range.
Large antenna volume, not fit for vehicle-mounted or portable deployment.
Weak ground clutter suppression, resulting in higher false alarms in urban built-up areas.
Applicable scenarios: Airport clearance zones, coastal borders, large reservoirs, long-distance early warning.
2. X-band (Mainstream anti-UAV radar band, dual-use for water & low-altitude surveillance)
Advantages
Well-balanced ranging and angular accuracy, perfectly guiding optoelectronic tracking turrets.
Excellent clutter suppression to reduce false alarms in complex urban, port and factory environments.
Acceptable rain attenuation; detection range only slightly drops under moderate rainfall.
Mature regulatory standards, widely specified in government and maritime tenders.
Disadvantages
Detection distance will decrease by about 30% under heavy rain or thick fog, inferior to S-band in ultra-long-distance monitoring.
Applicable scenarios: Ports, industrial parks, prisons, government compounds, dual-purpose radar for inland water & low-altitude defense, standard government bidding projects.
3. Ku-band (Miniaturized short & medium-range defense)
Advantages
Small and lightweight antenna, easy to install on vehicles, light towers and temporary security stations.
Narrow beam with outstanding angular precision, greatly reducing near-range blind zones.
Compact overall structure, low power consumption for mobile emergency deployment.
Disadvantages
Significant signal loss in heavy fog and heavy rain; maximum detection distance is limited.
Applicable scenarios: Temporary event security, vehicle-mounted mobile defense, small factories, residential compounds.
4. Ka-band (Ultra-high precision short-range interception)
Advantages
Extremely high resolution, capable of capturing tiny structural features of micro UAVs. Small footprint for concealed installation.
Disadvantages
Signal attenuates sharply in humid or rainy weather; only works for close-range protection.
Applicable scenarios: Key confidential buildings, short-range fixed interception systems.
5. 77GHz Millimeter Wave Radar
Advantages
Top-tier target resolution, able to recognize rotor micro-motion features to separate UAVs from birds. Ultra-small size for concealed integration.
Disadvantages
Severe attenuation in fog and rain; limited effective monitoring distance.
Applicable scenarios: Indoor perimeter security, short-range precision interception, auxiliary detection for fixed defense systems.
